Skippo Statmap
Statmap is an HTTP-based API for generating static raster-images of nautical charts and aerial imagery.
URL format
{baseURL}/{style}.{format}?{params}

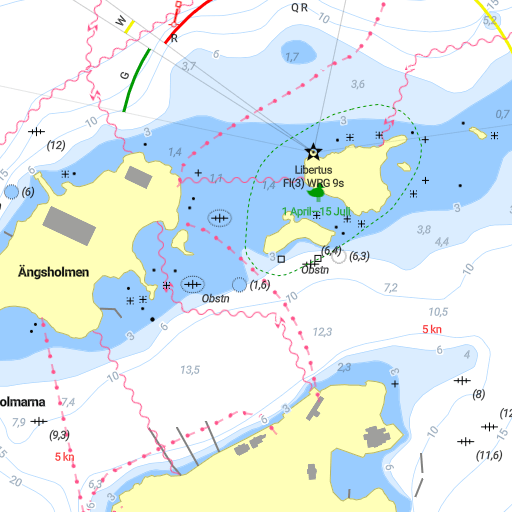

Example
{baseURL}/light.png?lng=18.17518&lat=59.33115&zoom=15Parameters
| Name | type | Default | Description |
|---|---|---|---|
| style | string | light |
The map style. Possible values: light,
night, hg_light, hg_night,
aerial
|
| format | string | png |
Image format. Possible values: png,
webp, jpg
|
| lng | number | 0 |
The longitude of the geographical centerpoint of the map. |
| lat | number | 0 |
The latitude of the geographical centerpoint of the map. |
| zoom | number | 0 |
The zoom level of the map. |
| pitch | number | 0 |
The pitch (tilt) of the map, measured in degrees away from the plane of the screen (0-85). |
| bearing | number | 0 |
The bearing (rotation) of the map, measured in degrees counter-clockwise from north. |
| bbox | []number |
The bounds of the map. If specified, it overrides
lng, lat
and
zoom parameters. Example:
bbox=17.95787,59.30202,18.10894,59.32849
|
|
| padding | number | 0 |
The padding in pixels around the viewport. Used together with
bbox or overlay
|
| width | number | 512 |
Image width in pixels |
| height | number | 512 |
Image height in pixels |
| dpr | number | 1 |
Image device pixel ratio |
| overlay | string |
Features (points, lines, and polygons) to be displayed on the map.
Must be a
Base64
encoded
GeoJSON
FeatureCollection. If lng, lat,
zoom or bbox are not set, map bounds are
calculated from the overlay. See
overlay playground.
|
|
| hillshade | boolean | false |
Show hillshading (terrain relief). |
| shade | number | 0.5 |
Hillshade strength (0-1). Used together with
hillshade
|
Examples

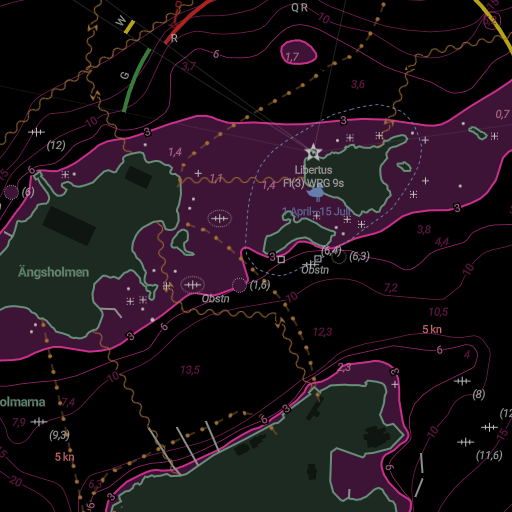

Night mode

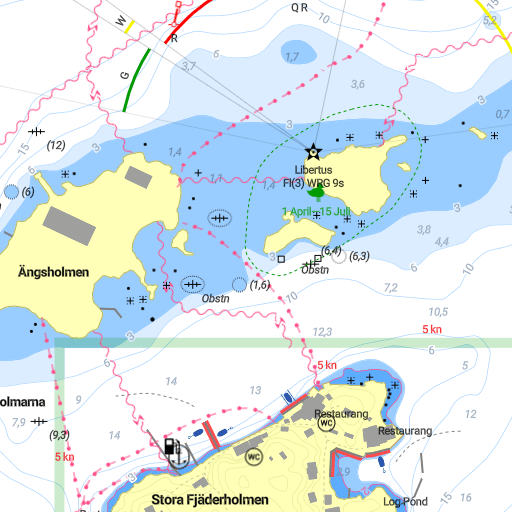

{baseURL}/night.png?lng=18.17518&lat=59.33115&zoom=15Hydrographica

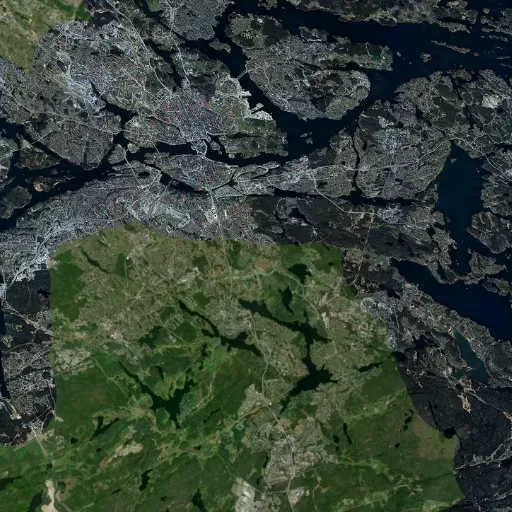

{baseURL}/hg_light.png?lng=18.17518&lat=59.33115&zoom=15Aerial
{baseURL}/aerial.png?lng=18.17518&lat=59.33115&zoom=15Aerial with both Lantmäteriet and Mapbox satellite
{baseURL}/aerial.webp?lng=18.12379&lat=59.27127&zoom=9.5Hillshade
{baseURL}/hg_light.png?lng=13.95&lat=68.2&zoom=9&hillshade=true&shade=0.55Pitch and bearing
{baseURL}/light.png?lng=18.17518&lat=59.33115&zoom=15&pitch=75&bearing=45BBox and padding
{baseURL}/light.png?bbox=18.19469,59.30319,18.18569,59.33319&padding=50Width, height and dpr
{baseURL}/light.png?lng=18.17518&lat=59.33115&zoom=15&width=750&height=750&dpr=2Overlay
{baseURL}/light.png?width=500&height=500&padding=50&dpr=2&overlay=eyJ0eXBlIjoiRmVhdHVyZUNvbGxlY3Rpb24iLCJwcm9wZXJ0aWVzIjp7ImltYWdlcyI6eyJibHVlIjp7InVybCI6Imh0dHBzOi8vbWFwcy5nb29nbGUuY29tL21hcGZpbGVzL21zL2ljb25zL2JsdWUucG5nIn0sInJlZCI6eyJ1cmwiOiJodHRwczovL21hcHMuZ29vZ2xlLmNvbS9tYXBmaWxlcy9tcy9pY29ucy9yZWQucG5nIn19fSwiZmVhdHVyZXMiOlt7InR5cGUiOiJGZWF0dXJlIiwicHJvcGVydGllcyI6eyJpY29uLWltYWdlIjoiYmx1ZSIsImljb24tYW5jaG9yIjoiYm90dG9tIn0sImdlb21ldHJ5Ijp7InR5cGUiOiJQb2ludCIsImNvb3JkaW5hdGVzIjpbMTcuOTU3ODc1MjkwMjg5NzA3LDU5LjMxMDQxNjg2NjMyMTc2XX19LHsidHlwZSI6IkZlYXR1cmUiLCJwcm9wZXJ0aWVzIjp7Imljb24taW1hZ2UiOiJyZWQiLCJpY29uLWFuY2hvciI6ImJvdHRvbSJ9LCJnZW9tZXRyeSI6eyJ0eXBlIjoiUG9pbnQiLCJjb29yZGluYXRlcyI6WzE4LjA4MDcyODE3MjEzNTE2Nyw1OS4zMjEzNzk2MDYwMzU5NV19fSx7InR5cGUiOiJGZWF0dXJlIiwicHJvcGVydGllcyI6eyJsaW5lLWNvbG9yIjoiYmx1ZSIsImxpbmUtd2lkdGgiOjJ9LCJnZW9tZXRyeSI6eyJjb29yZGluYXRlcyI6W1sxNy45NTc4NzUyOTAyODk3MDcsNTkuMzEwNDE2ODY2MzIxNzZdLFsxNy45NzM4MjY3MTgzNzc2MSw1OS4zMTQ5MzAzNzQ3NTQ0XSxbMTcuOTg0NDIyNDY0NTk3MzQ0LDU5LjMxNTkxMzkzNzM5NDA0XSxbMTguMDA1NTg2ODgyNTMxODE2LDU5LjMyMDgxOTU3OTI0OTczXSxbMTguMDE1Mzc3OTI4NjE4MjgsNTkuMzE3ODc2MjEwMDMwMTY0XSxbMTguMDE4MjYyMzAyMDI5OTk2LDU5LjMxNjIwODQ2NjA2NDY5NF0sWzE4LjAyOTAyNzcxNjI1NzEwNCw1OS4zMTQ2NDY1NjQ0MTVdLFsxOC4wMzY3MTQwMjc0NDk0NSw1OS4zMDkzNDczNTAxMTU0Ml0sWzE4LjAzOTAxMjgwMzY5MzAyNiw1OS4zMDYzMTYzMzc0OTI4XSxbMTguMDUzNDQxMTA1NjIwNDY1LDU5LjMwNDMzODM1OTI1MDQ0XSxbMTguMDc0ODc5Nzk1NDc2MzA2LDU5LjMwMjAyMDAyMjg1MTQ4XSxbMTguMDc3NjI2NzM0ODMwMTIsNTkuMzAzMDI0OTc3Nzg0OV0sWzE4LjA3ODMwOTI5NDY4NDcxNSw1OS4zMDMyNTIzNTc0MDM0OTRdLFsxOC4wODA4MjI1MTAzODgzNzMsNTkuMzAzNjUwMjQxODQwMTNdLFsxOC4xMDAzMDk0NTA0ODMxMSw1OS4zMDc3MDA4NzM0NDEzNV0sWzE4LjEwMjY3MjIwMzQ1NjEzNyw1OS4zMTI0NDU2MjY2NTE4NV0sWzE4LjEwODk0NjgxODY4ODc2NCw1OS4zMTYyNDI0MjMxMDUzOV0sWzE4LjEwNjMyOTUyNzk4MTEwMyw1OS4zMTg4MTE2OTE1NzA3NDRdLFsxOC4wODMxMzUxMzcyMTUwNjYsNTkuMzIwNjUzOTEwNzQzMDNdLFsxOC4wODA3MjgxNzIxMzUxNjcsNTkuMzIxMzc5NjA2MDM1OTVdXSwidHlwZSI6IkxpbmVTdHJpbmcifX1dfQ%3D%3DMore examples at overlay playgound

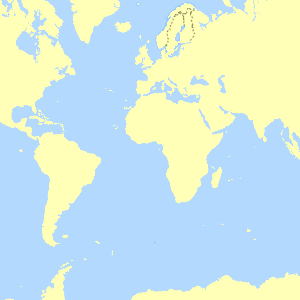

Eniro compatible mode
Eniro compatible mode is a drop-in replacement for Eniros old statmap service (https://statmap.eniro.com/statmap).
URL format
{baseURL}/{version}/eniro.png?{params}
Supported parameters
itype, iwidth, iheight,
bbox, scale, g, p
